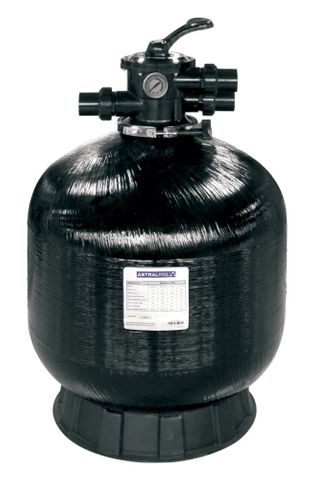

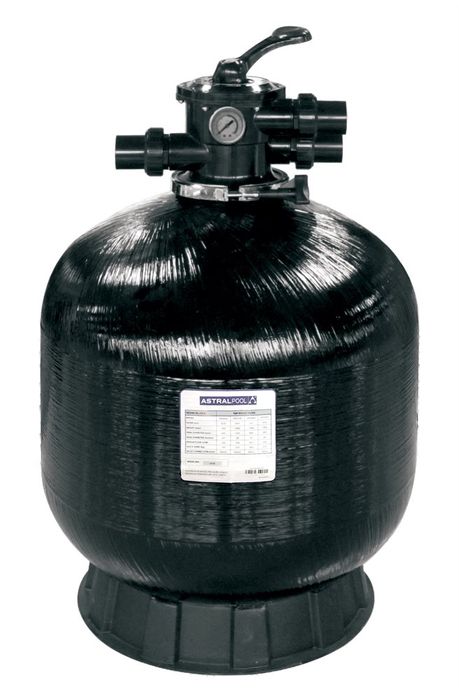

Astral 28" FG APV700 Sand Filter

Stock Code:
50028
POA

Description

Contact Us For Instore Pricing.


Email: Contact Us Here


Call: 03 9439 9214




 Brochure


 Manual




The FG Media Filter has been designed to provide high performance filtration for residential and small commercial pools and spas. All aspects of the filter have been designed to match high performance pumps and enhance the pump performance, allowing faster filtration using less energy.




Features & Benefits



  • Faster, More Effective Filtration: AstralPool FG Filters produce crystal clear water using fine sand or glass as the filter medium. With a large capacity and higher flow rates, this enables the pool water to be filtered more effectively in a shorter period of time, saving on operating costs. They also make the FG Series perfect for in-floor cleaning system.

  • Easy To Clean: Periodic cleaning can be achieved in less than 3 minutes by simply repositioning the multi-port valve handle. The unique 12 arm hub with 25mm laterals provides excellent flow rates. Superior backwash ensures that the filter media is always efficient and effective.

  • Superior Quality: The filter tank is made of an inner fibreglass bladder which is then continuously wound with fibreglass strands to create a high strength vessel. This process is recognised as one of the strongest methods of manufacturing a non corrosive high strength filter tank. All components are injection moulded from high strength engineering plastics and even the oil filled pressure gauge is sourced from Europe to give long life and accurate readings.




Technical Specifications



  • Filter Area; 0.41 Sq M

  • Max Flow Rate (LPM): 336

  • Sand Required (16/30 grade): 215 kg

  • Pump Sizing: Ensure pump flow rate DOES NOT EXCEED the maximum flow rate of the filter.




Warranty:



  • 10 years (tank)*
    *Labour service will be warranted for the initial 12 months from date of purchase on tanks only. 1 year only on multi-port valve and internal components, including O-rings, gaskets and gauges






Great Quality Matched With Great Value
